RTCDS1338


Real Time Clock Breakout Board


  •



EXPKITS DS1338 RTC Breakout Board

     Expkits DS1338 RTC ( Real time clock - Gerçek zaman saat)  kartı saat bilgisinin kullanıldığı uygulamalar içindir. I2C haberleşmesi kullanılarak haberleşme yapılabilir. Kit üzerinde RTC hafıza için kullanılmak üzere CR2032 pil bulunmaktadır. Düşük güç kullanması sebebiyle uzun yıllar zamanı doğru olarak gösterir. Çeşitli microkontrolör projelerinde zaman ve tarih bilgisinin izlenmesi için kullanılır. Dataloglama, saat uygulamaları, zamanlayıcı, zaman işaretleyici, alarm gibi uygulamalarda kullanılır.

DS1338  Entegre özellikleri

      The DS1338 serial real-time clock (RTC) is a low-power, full binary-coded decimal (BCD) clock/calendar plus 56 bytes of NV SRAM. Address and data are transferred serially through an I²C interface. The clock/calendar provides seconds, minutes, hours, day, date, month, and year information. The end of the month date is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24-hour or 12-hour format with AM/PM indicator. The DS1338 has a built-in power-sense circuit that detects power failures and automatically switches to the backup supply, maintaining time and date operation.

  •     RTC Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap-Year Compensation Valid Up to 2100
  •     56-Byte Battery-Backed General-Purpose RAM with Unlimited Writes (NVSRAM)
  •     I²C Serial Interface
  •     Programmable Square-Wave Output Signal (SQW)
  •     Automatic Power-Fail Detect and Switch Circuitry
  •     Leap Year
  •     Time Format    HH:MM:SS (12/24 hr)
  •     Date Format    YY-MM-DD-dd
  •     Voltage - Supply    3 V ~ 5.5 V
  •     Voltage - Supply, Battery    1.3 V ~ 3.7 V
  •     Current - Timekeeping (Max)    125µA ~ 200µA @ 3.63V ~ 5.5V
  •     Operating Temperature    -40°C ~ 85°C


DS1338 RTC Breakout Özellikleri



  •     DS1338Z entegresi kullanılmıştır.
  •     Hassas saat ve tarih bilgisi verir.
  •     Kart üzerinde bulunan CR2032 pil ile yıllarca çalışabilir.
  •     I2C haberleşmesi kullanır.
  •     6 pin erkek header ile  bağlantıları gerçekleştirilir
  •     Breadboarda direk takılabilir. Veya kablo ile kullanılabilir.
  •     Kare dalga çıkışı alınabilecek bir pini vardır.
  •     56 byte kullanıcı eepromu
  •     1 adet besleme gösterge pini.
  •     Çalışma voltajı 5V-3.3V
  •     Ölçüler 30 mm x 30 mm

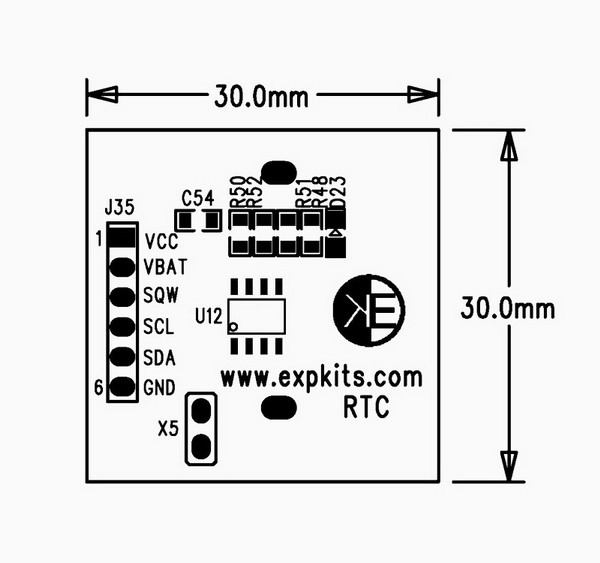

DS1338 RTC PCB Boyutlar

Paket İçeriği

  • 1 Adet Expkits DS1338 RTC Breakboard
  • 1 Adet 10 lu Dişi Dişi Dupont Kablo
